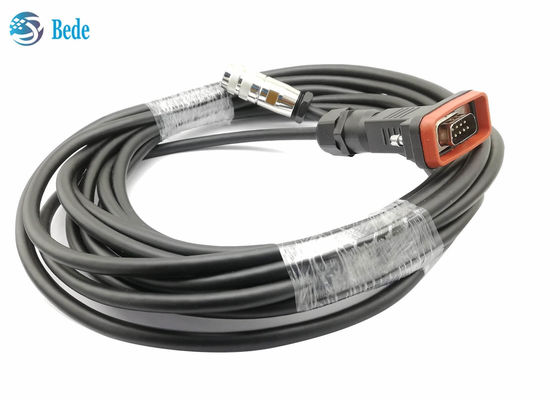

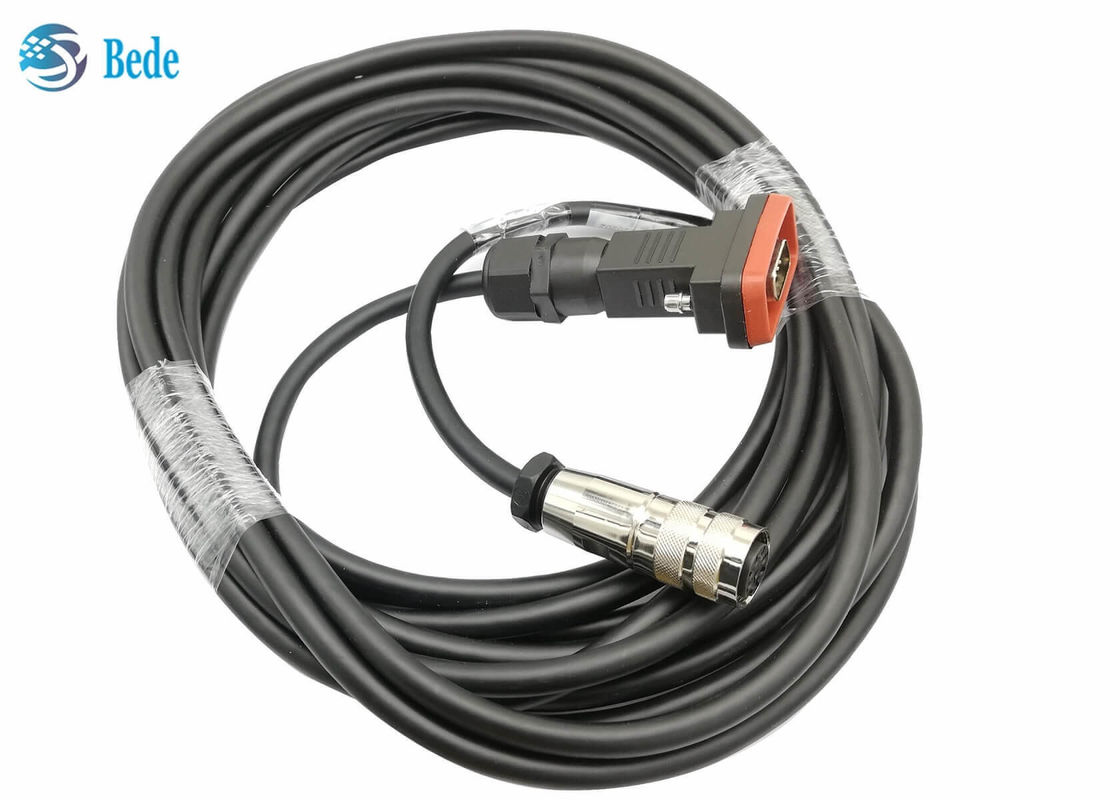

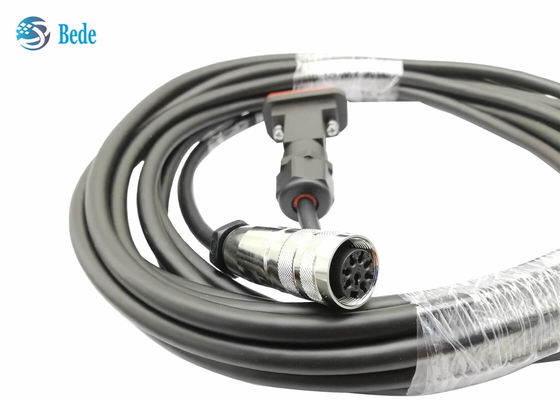

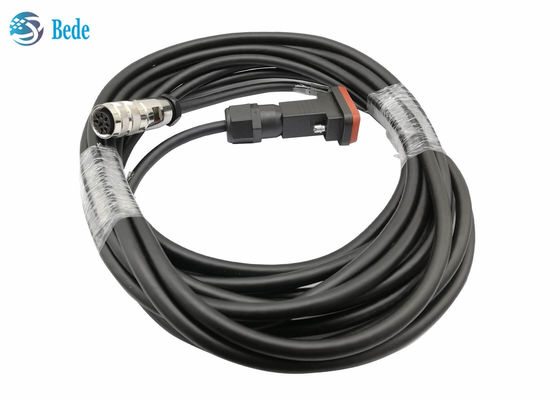

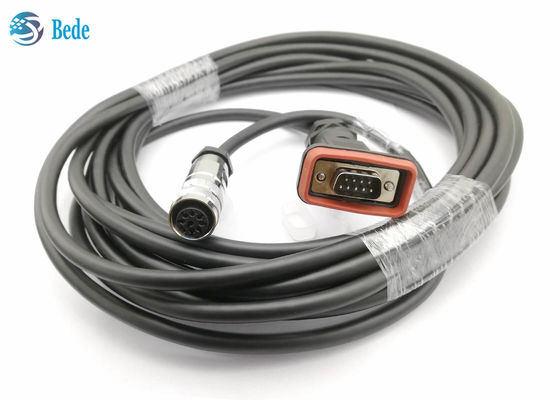

Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length

HUAWEI AISG Cable,  DB9 Male to M16 8 Pin Female 5 Meters Length

Technical requirements for wires

Conductor: Tinned copper wire, 17*0.16, rated voltage 300V

Shielding layer: Aluminum-magnesium alloy, the coverage rate more than 85%

Shell: PVC material, resistant to UV aging, UL1581  1000 hours

Electrical Characteristics
Withstand voltage: 850V
Contact impedance: <5mΩ
Insulation resistance: 500MΩ
Rated voltage: 300V

Mechanical properties
Insertion force: 6PIN-45N max;
Pulling force: 6PIN-45N max;
Center Conductor Thrust: 6 lbs Min
Coupling Nut Capacity: 80 lbs (350 N) Min
Coupling Nut Torque: 10 lbs-in Min
Waterproof requirements: IP67
Mechanical life: 500 times

Environmental requirements
Temperature Cycling: -40°C +85°C (IEC 60068-1)
Fire rating: UL94-V0
Neutral salt spray: 168H
