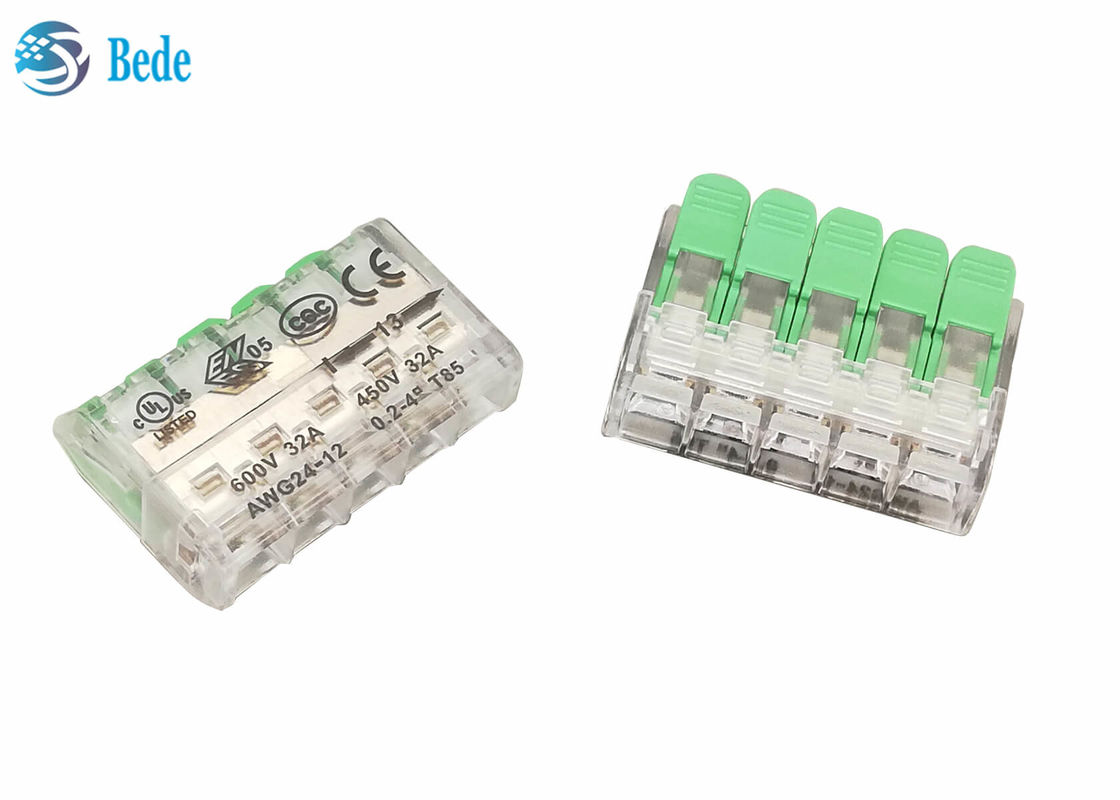

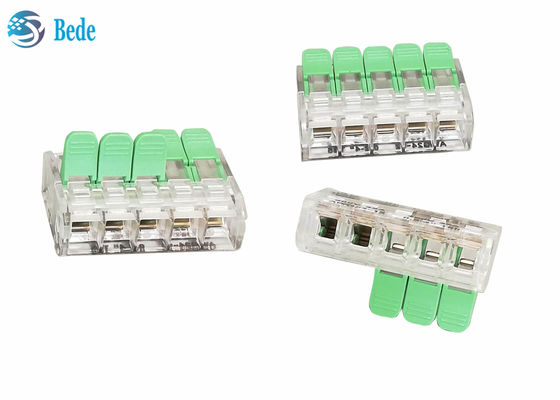

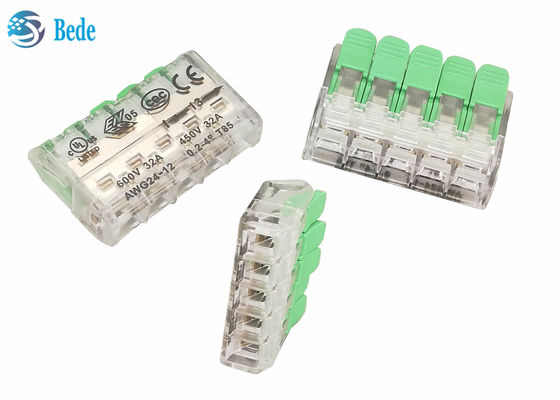

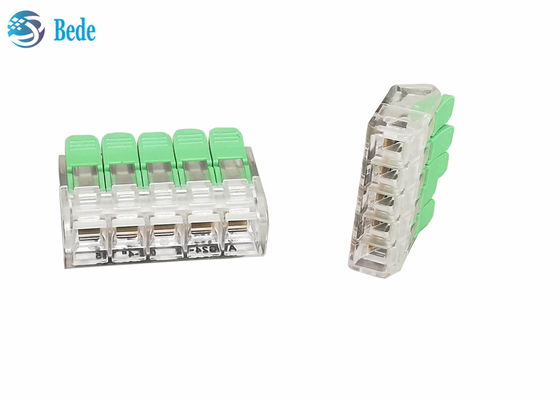

Spring Lever Quick Connect Terminal Block 5 Way 450V 32A OJ265

Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265
Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265

تصویر بزرگ :  Spring Lever Quick Connect Terminal Block 5 Way 450V 32A OJ265

جزئیات محصول:
محل منبع: چین
نام تجاری: BEDE
گواهی: CE RoHS
شماره مدل: OJ265
پرداخت:
مقدار حداقل تعداد سفارش: 1000 عدد
قیمت: negotistion
جزئیات بسته بندی: 2 پین 2500 عدد در هر کارتن، 3 پین 1500 عدد در هر کارتن
شرایط پرداخت: T/T، Western Union، MoneyGram، Paypal
قابلیت ارائه: 20000 عدد در روز
توضیحات محصول جزئیات
ولتاژ: 450 ولت فعلی: 32a
اندازه: 24*10*32 میلی متر وزن: 6.2 گرم
برجسته کردن:

5Way quick connect terminal block,quick connect terminal block 450V 32A,5Way quick connection terminal

,

quick connect terminal block 450V 32A

,

5Way quick connection terminal

Spring Lever Connectors Quick Terminal Blocks 5 Way 450V 32A OJ265



product structure

  1. Zinc-plated copper conductor with good electrical conductivity
  2. Handle, PA66 material, flame retardant ability UL94-V2
  3. Insulation shell, PC material, flame retardant ability UL94-V2
  4. Wire hole, applicable wire 12~24AWG, singel hard wire 0.2 ~ 4.0 mm2, multi strand hard / soft wire 0.5 ~ 2.5 mm2

Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 0



Features

  1. Quick wiring, replacing traditional insulating tape, no screws, no screwdriver,
  2. Both soft and hard wires can be used
  3. Flame retardant, safe, prevent high temperature short circuit
  4. Easy to replace and save time in modifying the circuit

Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 1

How to Use

  1. Strip the insulation of the wire about 13mm
  2. Lift the squeeze handle up
  3. insert the wire
  4. Press the wire squeeze handle down

Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 2



family members

2 way , 3 way in stock also, please contact us directly or back to catalog to know more

Spring Lever Quick Connect Terminal Block 5 Way  450V 32A OJ265 3
