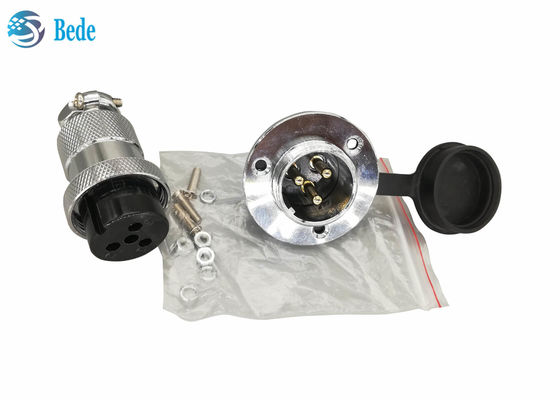

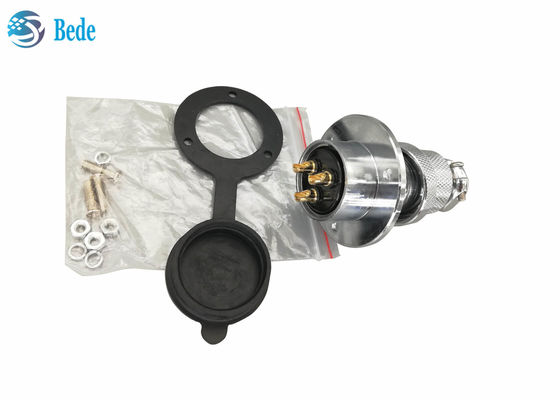

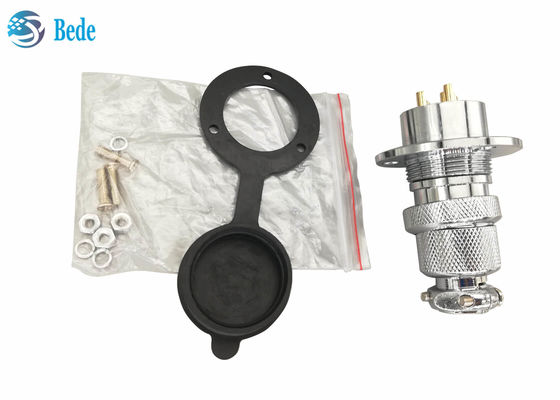

Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting

 Circular Connectors With Round Flange And Dust Cover 8 9 10 12 Pin For Panel Mounting

Description

1. High-current aviation connectors for rail transit, aviation, navigation, industrial control, test instruments and other fields
2. Panel mounting model, panel mounting hole size is 25mm
3. Suitable for temperature range of -50~+70℃
4. Wiring method: soldering
5. Pins: 8 9 10 12  pins
6. Complete accessories, coming with all the nuts , washers and screws

Structure

1.Silicone gaskets and dust cover

2.Male end with flange, zinc alloy materials,

3.Insulator, bakelite material

4.Screw nut and washers for mounting male connector on panel

5.Contacter, brass materials,

6. Nut, zinc alloy materials, fixed the male end and fermale end after connection

7.Female connector, zinc alloy moterials

Electrical data
