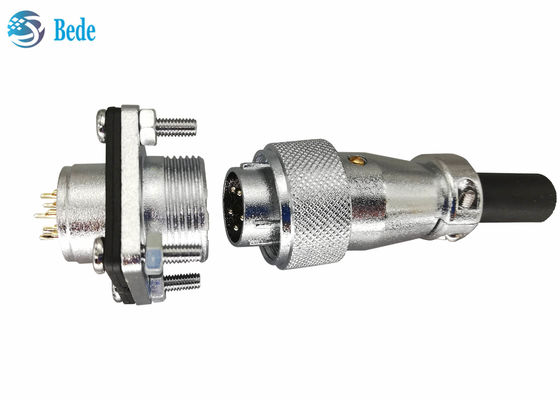

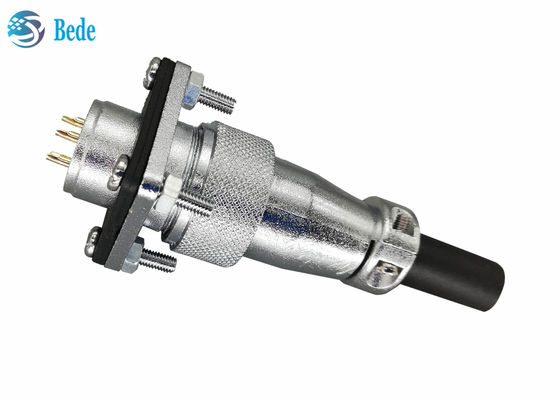

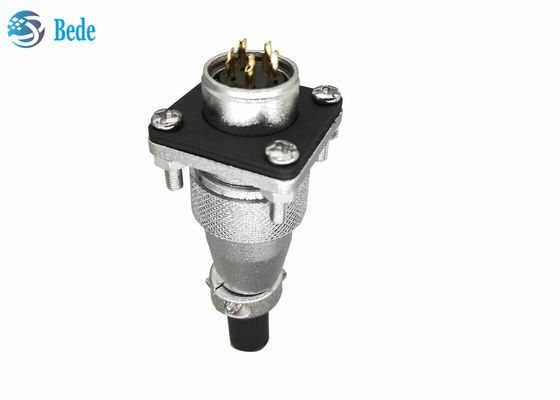

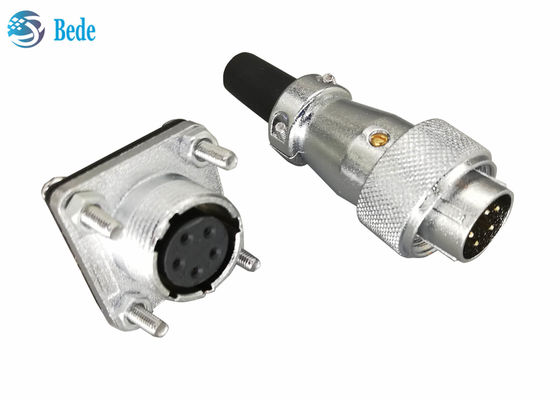

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

WS20 Circular Connectors With Square Flange And Dust Cover 5 6 7 8 Pin 500V 10A

Product description

   A military-quality connector with a zinc alloy housing, PPS plastic insulator, and gold-plated copper contact pins. Its a panel mounting type, the wiring method is welding, 20.5mm mounting holes and 4 pcs  2.3mm flange mounting holes should be reserved on the panel. This circular connector suitable for -40~+85℃ environment, suitable cable diameter 6 mm, 11AWG, widely used in military industry, navigation, aviation, oil exploration, industrial control and other fields.

   There are 2~10, 12 and 14 pin in stock, the default delivery is the A model in the picture below, if the B model is required, please contact us.

Product Size

   Wiring end:  ΦD=25.8mm     L=49.5mm        Φd_max=11.6mm

   Panel mounting end and mounting hole:

Electrical data

Similar product

This page is about WS20, the WS16, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested
