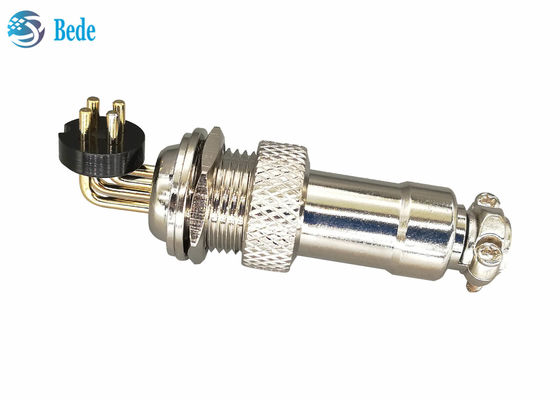

GX16 PCB Welding Connector With 90 Angle Pins Male And Female Connector 2 3 4 5 Pins
Description
1. Mele and female connector kits for PCB welding, the end for PCB welding with 90 angle pins
2. Military quality, housing material is nickel plated zinc alloy, insulation material is bakelite, contact pin material is silver plated brass
3. Used in aviation, navigation, rail transit, industrial control and other fields
4. Applicable cable diameter is less than or equal to 7.5 mm,
Electrical data
| pins |
Rated current |
working voltage |
Insulation resistance |
Contact resistance |
contact hole |
| 6 7 8 9 10 |
4A |
200V |
1500MΩ |
3mΩ |
1.15mm |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Panel mounting model--Rear mounting
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
