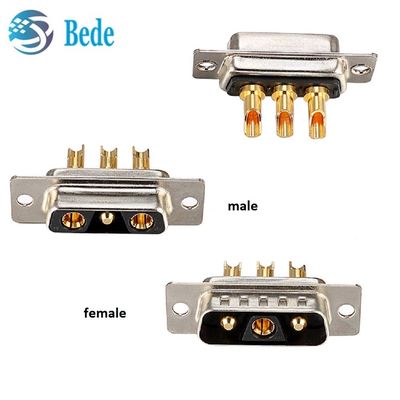

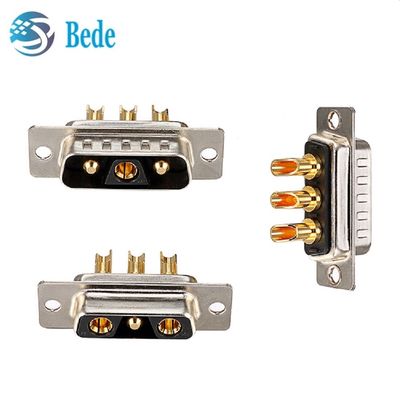

D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors

D-Sub 3W3 coaxial power connector male and female combo high current connectors

Description

   3V3 female d-sub coaxial power connector, male and female combo type high current connectors, machined phosphor copper with gold over nickel plated, steel-tin/nickel-plated shell, high temperature white insulator (thermoplastic type PCT UL94V-0), by preloaded fixed contacts and brackets on the PCB bord, the combination D-sub connectors make the signal, power, high voltage running between power and device.

Electrical Characteristics

1. Electrical Characteristics
2. High Power Contact Current Rating: 10, 20, 300, or 40 Amps.
3. Working Voltage: 300V.
4. High Power Contact Resistance: 2.7 milliohms maximum.
5. Dielectric Withstand Voltage: 1000 VAC for 1 minute.
6. Insulation Resistance: 2000 megohms minimum.
7. Temperature Rating: -55°C to +125°C

Size of 3W3 coaxial power connector

   Please refer to the following drawings for dimensions. If more details are needed, please feel free to contact us

How to Buy

  We provide this product with different rated currents for different usage scenarios. Please let us know the part number and quantity. We will wholeheartedly provide you with the best products and services.
