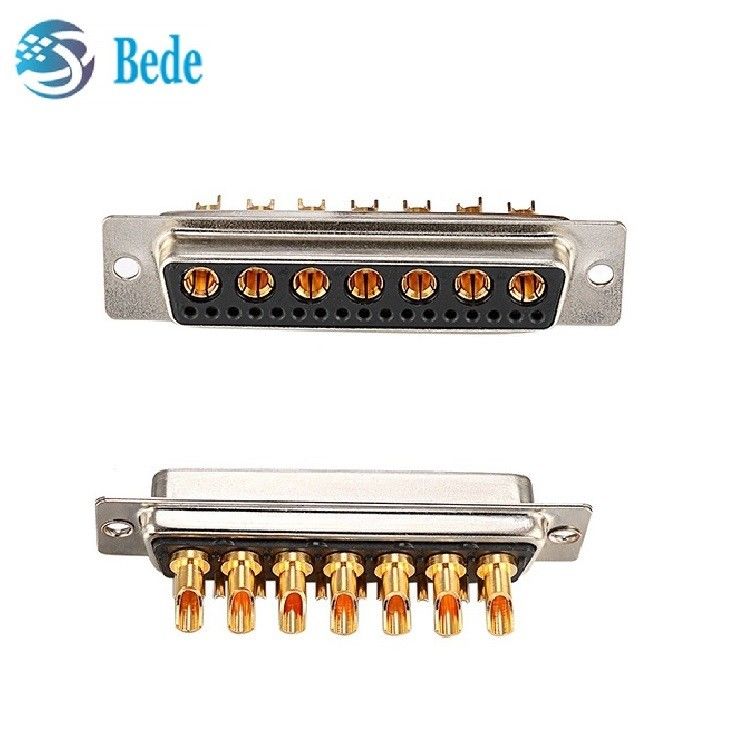

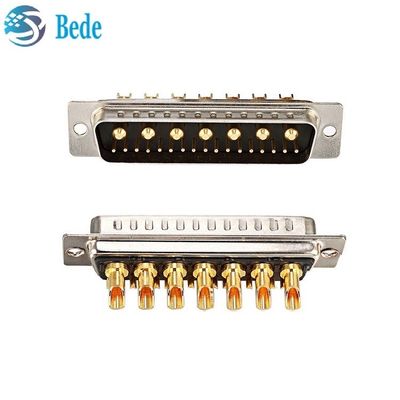

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

Description

Bede's 24W7 D-Sub connectors redefine space-constrained interconnect solutions through optimized 24-pin hybrid configuration (7 RF coaxial + 17 power contacts). Engineered for mission-critical systems requiring concurrent high-voltage power delivery and precision signal transmission in compact footprints.

Applications:

• Telecom Infrastructure: Massive MIMO antenna array power/signal consolidation
• Robotics: Cobot servo motor power & feedback signal unification
• Energy Storage: BMS multi-cell voltage monitoring interfaces
• Aerospace: Avionics LRU module hot-swap connectivity

Technical Specifications

• Contact Layout:   24-position (7x coaxial + 17x power)
• RF Bandwidth DC - [Insert GHz]
• Current Rating:  3A per Single contact,
• Current Rating: 10A/ 20A/ 30A/ 40A  Optional
• Contact resistance:2.7 MΩ Max.
• Insulation resistance:2000 megaohms min
• Dielectric Withstanding Voltage: 1000V for 1 Min.
• Insertion Force:  0.7~2N per single contact
• Extraction force: 2N per single contact
• Operating Temperature: -55°C to +105°C
